Tesla Model Y: How It Works

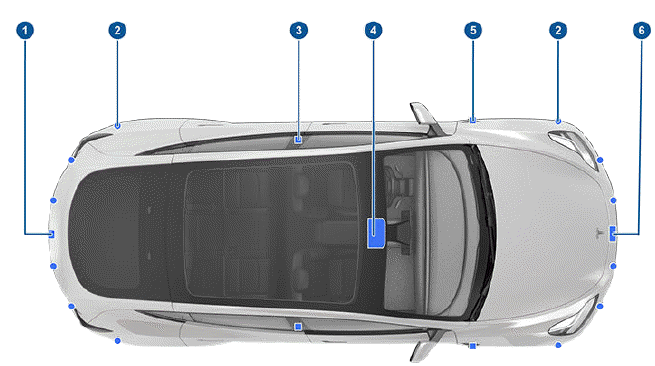

Your Model Y includes the following components that actively monitor the surrounding area:

How It Works

  1. A camera is mounted above the rear license plate.
  2. Ultrasonic sensors are located in the front and rear bumpers.
  3. A camera is mounted in each door pillar.
  4. Three cameras are mounted to the windshield above the rear view mirror.
  5. A camera is mounted to each front fender.
  6. Radar (if equipped) is mounted behind the front bumper.

Model Y is also equipped with high precision electronically-assisted braking and steering systems.

In addition, the cabin camera can determine driver inattentiveness and provide alerts when Autopilot is engaged. By default, data from the camera does not leave the vehicle itself. In other words, data is not saved or transmitted unless you enable data sharing. To enable data sharing, touch Controls > Software > Data Sharing > Allow Cabin Camera Analytics. Cabin Camera Analytics helps Tesla continue to develop even safer vehicles in the future. See Cabin Camera.

NOTE: Ensure all cameras and sensors (if equipped) are clean before each drive. See Cleaning Cameras and Sensors for more information. Dirty cameras and sensors, as well as environmental conditions such as rain and faded lane markings, can affect Autopilot performance.

Active Safety Features

These Active Safety features are designed to increase your safety:

  • Lane Assist
  • Collision Avoidance Assist
  • Speed Assist
  • Cabin Camera

You can enable/disable some of these features and in some cases, control how they work. To access settings for these features, touch Controls > Autopilot.


     Autopilot Features

    NOTE: Depending on market region, vehicle configuration, options purchased, and software version, your vehicle may not be equipped with all features listed below, or a feature may not operate exact


    Many factors can impact the performance of Autopilot components, causing them to be unable to function as intended. These include (but are not limited to): Poor visibility (due to heavy rain, snow

     Cleaning Cameras and Sensors

    To ensure the various Autopilot components can provide information that is as accurate as possible, keep them clean and free of obstructions, condensation, or damage (see Cleaning). Condensation c


     Controlling the Passenger Front Airbag

    Model Y has an occupancy sensor in the front passenger seat that controls the status of the front airbag. NOTE: The occupancy classification system (OCS) meets the regulatory requirement of FMVSS 208 and automatically detects when inflating the passenger front airbag would be unnecessary or pote

     How Park Assist Works

    Model Y has several sensors designed to detect the presence of objects. When driving slowly in Drive or Reverse (for example, when parking), the vehicle alerts you if an object is detected in close proximity of your Model Y. Objects are only detected in your chosen direction; front objects in D
